Frami Xlife System
Logical system grid
-
logical system grid in heights of 1.20 m, 1.50 m, 2.70 m and 3.00 m, and widths of 30 cm to 90 cm, in 15 cm increments, for optimum adaptability to the structure
-
75 cm or 90 cm wide Universal panels with hole grids for stop-ends, outside corners and columns
-
larger gang-forms can be stiffened with aligning clamps or universal walings, allowing them to be repositioned quickly and easily by crane
Framax Xlife System
-

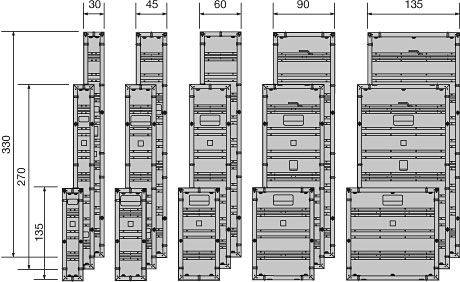

The ingeniously co-ordinated panel formats let you get the greatest possible use out of the formwork
-
15 cm grid, achieved with only five widths and three heights, simplifies planning, forming and logistics on the site
-
the frames come with practical cross boreholes that simplify work on stop-ends, corners and columns
-
stable galvanised powder-coated steel frames ensure plane concrete surfaces

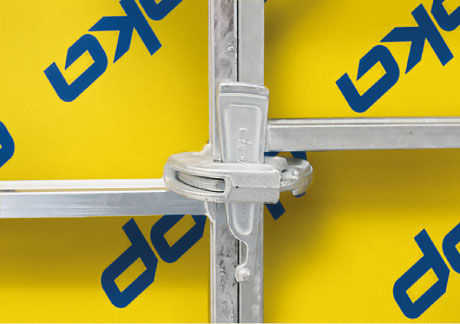

Frami clamp
Just one blow of the hammer on the Frami clamp is all it takes to pull the panels together and achieve a flush, correctly aligned panel joint that is resistant to tensile forces
The Frami Xlife universal panels permit right-angled corners up to wall thicknesses of 60 cm, in a 5 cm grid.

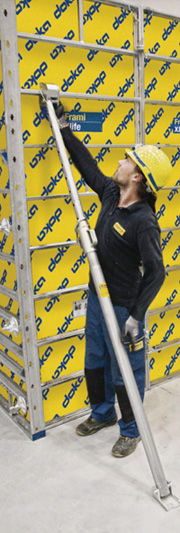

Room-high panels
The panels' robust constructional design and asymmetrically arranged form-ties allow even 270 cm high panels to sustain the full hydrostatic concrete pressure
The special hole-grid of the 75 cm and 90 cm wide Frami Xlife universal panels makes them suitable for economical forming of stop-ends, outside corners and columns.
An extensive range of accessories ensures safety during pouring, even for room heights of 2.70 m or 3.00 m that are poured in one continuous operation.
High-speed shaft formwork
Using profile adapters, the Frami Xlife panels can easily be combined with the Framax stripping corner
Hot-dip galvanised frames, Xlife sheet
The frames of the panels are made of hard-wearing hollow steel profiles and are torsion-proof with no need for any extra stiffening. Their premium hot-dip galvanised finish gives them a particularly long lifespan. The Frami Xlife sheet delivers high numbers of re-use cycles, with outstanding concreting results. Its special surface structure prevents splintering and swelling caused by nail-holes.
Continuous height mismatch
The continuous hardware slot in the frame means that the Frami clamp can be fixed anywhere on the frame. Because of this, the panels can be continuously height mismatched, i.e. without any pre-defined grid. This means that the formwork can easily be accommodated to e.g. steps, slopes and uneven ground, with no extra work.
Obtuse and acute-angled corners are formed using the galvanised Frami hinged inside corners
With its 15 cm clamping range, the Frami adjustable clamp exactly matches the panel size-grid. This means that only one closure is needed per wall plane
Foundations
Placed on their sides, Frami Xlife panels are ideal for cost-saving forming of foundations.
Working safely, with the Platform system Xsafe plus
These pre-assembled, fold-out working platforms, with their integral front/rear and side railings, ladders and self-closing manhole lids, are ready for immediate use and bring about decisive improvements in workplace safety.
